Using KYUSHU-DANJI with a Wheaton vial
Using KYUSHU-DANJI with a Wheaton vial

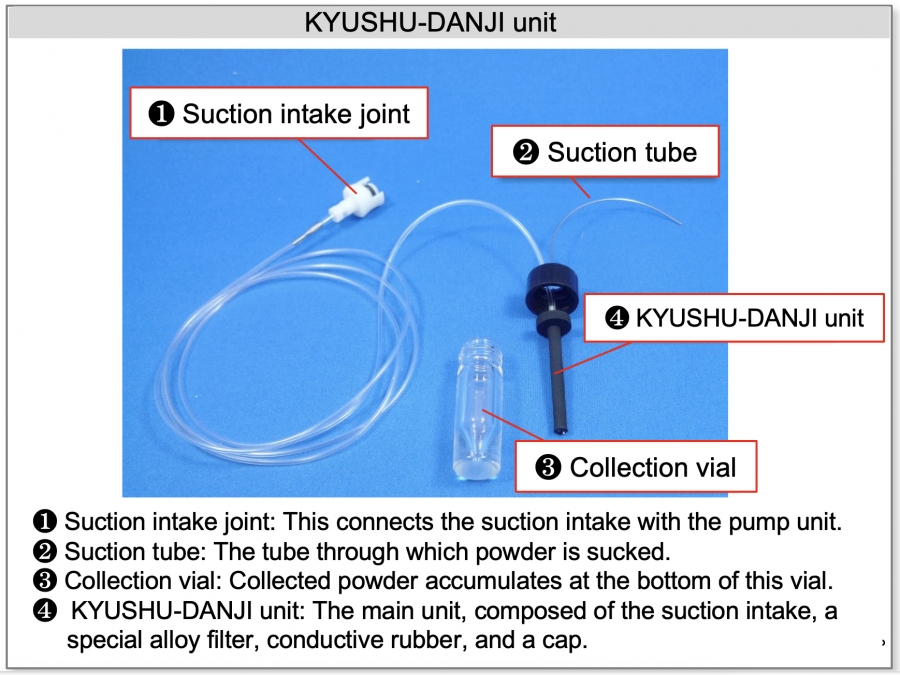

A hard rubber body with a miniature filter and suction tube is inserted and capped, forming a sealed space at the bottom of the vial. A vacuum pump is then turned on to collect powder samples.
![](/files/AddB016_2023100707582428280.jpg)
Powder brought close to the suction tube is collected in the vial.
![](/files/AddB016_2023100708000748539.jpg)
![](/files/B016_2023101901221291660.jpg)
Collection efficiency can be adjusted by changing the type of filter used. For example, in cases where a large number of samples creating a large amount of powder be used, a more porous filter will increase collection efficiency. We have 1, 2, and 5 µm filters in 1 and 2 mm diameter sizes.
![](/files/AddB016_2023101901243466966.jpg)
![](/files/AddB016_2023101901250194340.jpg)
