Using KYUSHU-DANJI with a Thermo Fisher Scientific vial
Using KYUSHU-DANJI with a Thermo Fisher Scientific vial

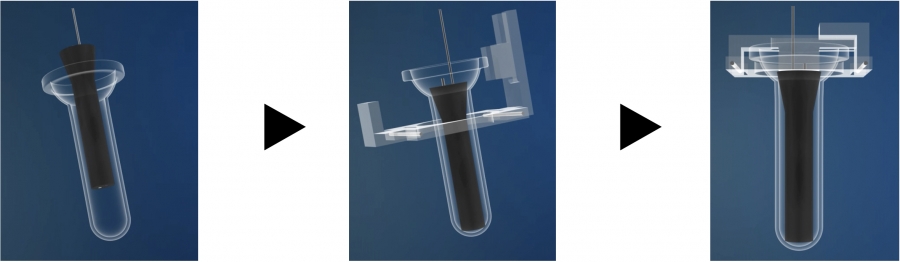

A hard rubber body with a miniature filter and suction tube is inserted and capped, forming a sealed space at the bottom of the vial. A vacuum pump is then turned on to collect powder samples.
![](/files/AddB016_2023100708075532738.jpg)

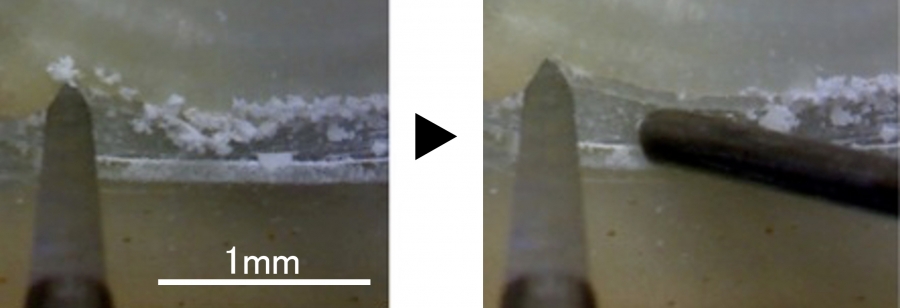

Powder brought close to the suction tube is collected in the vial.
![](/files/AddB016_2023100708090326033.jpg)
![](/files/B016_2023101901281685036.jpg)

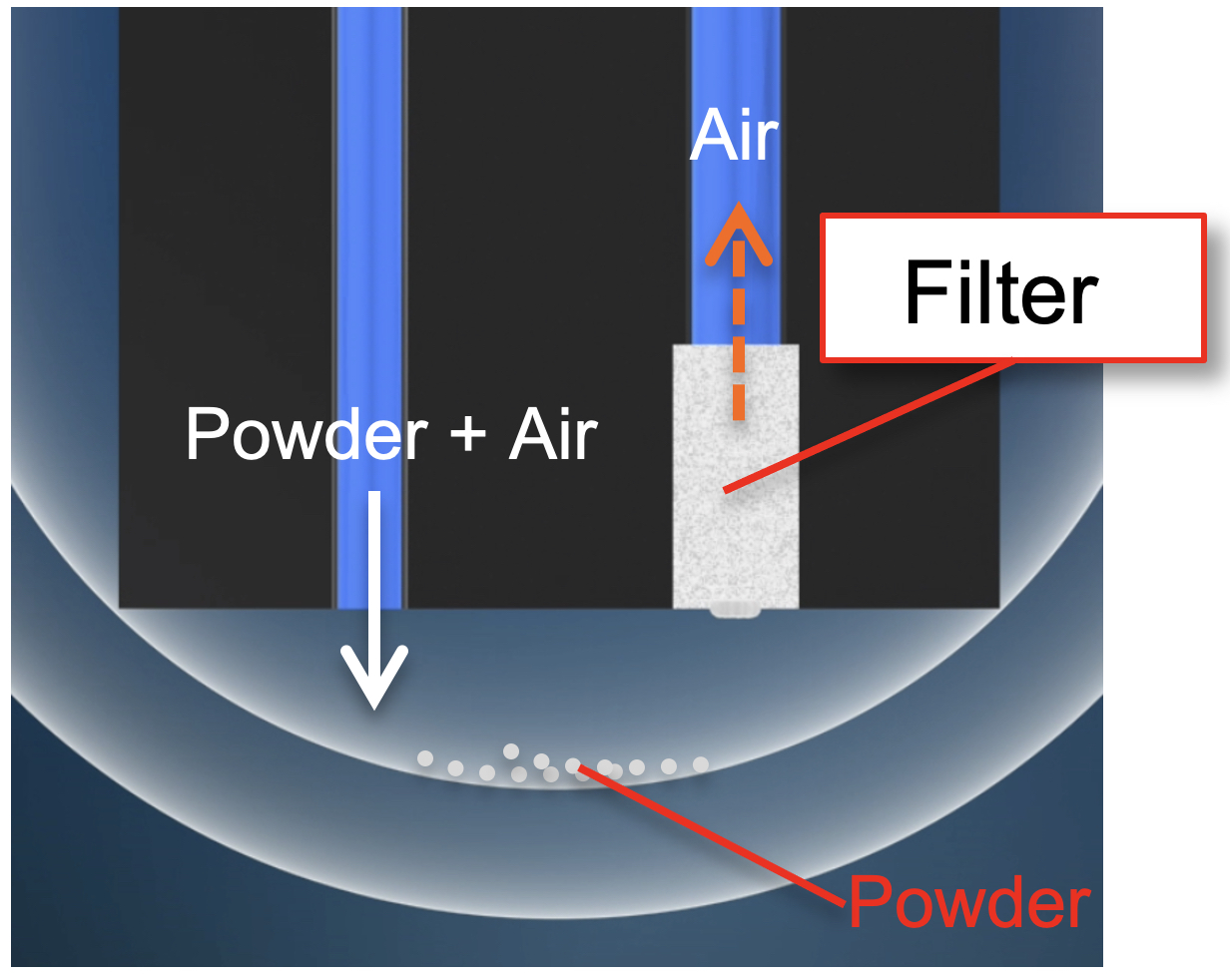

Collection efficiency can be adjusted by changing the type of filter used. For example, in cases where a large number of samples creating large amounts of powder will be used, a more porous filter will increase collection efficiency. We have 1, 2, and 5 µm filters in 1 and 2 mm diameter sizes.
![](/files/AddB016_2023101901302986405.jpg)
![](/files/AddB016_2023101901304380480.jpg)
